DDR5 16GB 1R*8 5600 PC-Desktop Memory-SHENZHEN SUPERWAY ELECTRONICS CO.,LTD.

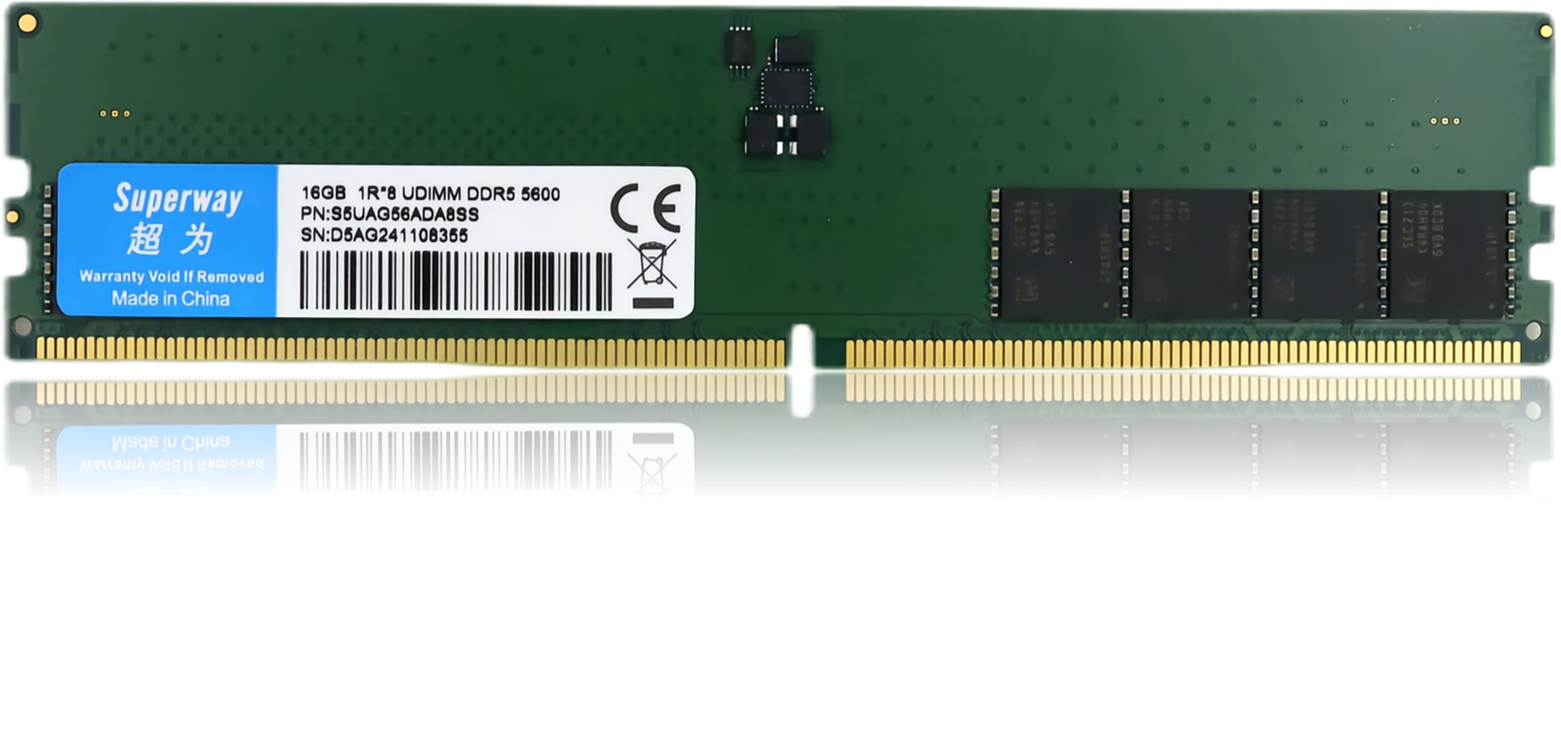

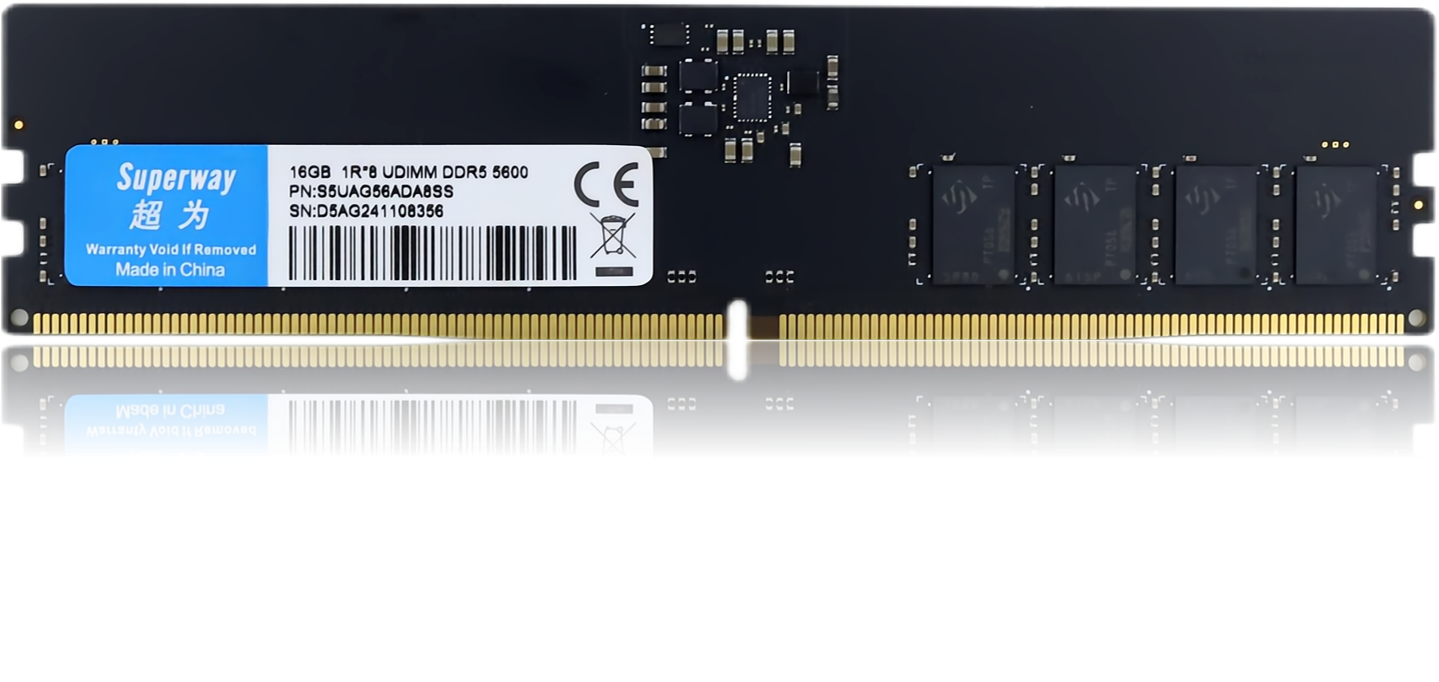

DDR5 16GB 1R*8 5600 PC

This DDR5 16GB 1Rx8 2Gx8 5600 memory module is built based on JEDEC standards and adopts a 1Rx8 single column architecture. It consists of 8 FBGA packaging particles with 2Gb x8 specifications. Each particle has an independent 8-bit data bandwidth and provides a total capacity of 16GB, which can meet daily office, multitasking, and light gaming needs. This product supports a data transfer rate of 5600MT/s, which significantly increases the theoretical bandwidth compared to DDR4 and can quickly load various programs. Timing CL46-46-46 balances delay and stability at high frequencies. 1.1V working voltage, compatible with mainstream Intel and AMD motherboards, compatible with desktop computers, and supports smooth operation with 288 pin UDIMM standard interface.

Description

High performance: 5600MHz frequency, CL46 timing, improving system operating efficiency.

High reliability: Original factory particles, passed strict quality testing.

Wide compatibility: Supports mainstream Intel/AMD platforms and adapts to various motherboard chipsets.

Environmentally friendly design: Environmentally friendly PCB, compliant with RoHS lead-free standards.

DDR	DDR5
Type	U-DIMM
Capacity	8GB/16GB/32GB
PCB Color	Green(G)/Black(B)
Organization	1R8/2R8
Operating Frequency	4800MHz/5600MHz/6000MHz
Voltage	1.1V±0.06V
PINS	288 pins
Bus Width	64 Bits
PCB height	1.27 mm±0.1 mm
Operating Temperature	0℃~85℃
3µ”Gold Finger	Y
Resistant to Sulfuration	Y
Applications	Desktop/Workstation
CL Timing	Different products vary
Performance	The higher the frequency, the faster the data transmission speed and the better the performance, but the actual performance is still affected by factors such as particle quality, motherboard, CPU, etc
